The generalized traveling salesman problem solved with ant algorithms

Contributed equally
Complex Adaptive Systems Modeling20175:8

https://doi.org/10.1186/s40294-017-0048-9

Received: 3 July 2017

Accepted: 31 July 2017

Published: 7 August 2017

Abstract

A well known \(\mathcal{NP}\)-hard problem called the generalized traveling salesman problem (GTSP) is considered. In GTSP the nodes of a complete undirected graph are partitioned into clusters. The objective is to find a minimum cost tour passing through exactly one node from each cluster. An exact exponential time algorithm and an effective meta-heuristic algorithm for the problem are presented. The meta-heuristic proposed is a modified Ant Colony System (ACS) algorithm called reinforcing Ant Colony System which introduces new correction rules in the ACS algorithm. Computational results are reported for many standard test problems. The proposed algorithm is competitive with the other already proposed heuristics for the GTSP in both solution quality and computational time.

Keywords

Meta-heuristicsIntelligent agentsGraphsData clustering

Background

Many combinatorial optimization problems are \(\mathcal{NP}\)-hard, and the theory of \(\mathcal{NP}\)-completeness has reduced hopes that \(\mathcal{NP}\)-hard problems can be solved within polynomially bounded computation times (Dahlke 2008; Dunne 2008). Nevertheless, sub-optimal solutions are sometimes easy to find. Consequently, there is much interest in approximation and heuristic algorithms that can find near optimal solutions within reasonable running time. Heuristic algorithms are typically among the best strategies in terms of efficiency and solution quality for problems of realistic size and complexity.

In contrast to individual heuristic algorithms that are designed to solve a specific problem, meta-heuristics are strategic problem solving frameworks that can be adapted to solve a wide variety of problems. Meta-heuristic algorithms are widely recognized as one of the most practical approaches for combinatorial optimization problems. The most representative meta-heuristics include genetic algorithms, simulated annealing, tabu search and ant colony. Useful references regarding meta-heuristic methods can be found in Glover and Kochenberger (2006).

The generalized traveling salesman problem (GTSP) has been introduced in Laporte and Nobert (1983) and Noon and Bean (1991). The GTSP has several applications to location and telecommunication problems. More information on these problems and their applications can be found in Fischetti et al. (1997, 2007) and Laporte and Nobert (1983).

Several approaches were considered for solving the GTSP: a branch-and-cut algorithm for Symmetric GTSP is described and analyzed in Fischetti et al. (1997), and Noon and Bean (1991) is given a Lagrangian-based approach for Asymmetric GTSP, in Snyder and Daskin (2006) is described a random-key genetic algorithm for the GTSP, in Renaud and Boctor (1998) it is proposed an efficient composite heuristic for the Symmetric GTSP etc.

The aim of this paper is to provide an exact algorithm for the GTSP as well as an effective meta-heuristic algorithm for the problem. The proposed meta-heuristic is a modified version of Ant Colony System (ACS). Introduced in (Maniezzo 1992; Dorigo 1992), Ant System is a heuristic algorithm inspired by the observation of real ant colonies. ACS is used to solve hard combinatorial optimization problems including the traveling salesman problem (TSP).

Definition and complexity of the GTSP

A definition of generalized traveling salesman problem (TSP) based on Laporte and Nobert (1983) and Noon and Bean (1991) follows.

Let \(G=(V,E)\) be an n-node undirected graph whose edges are associated with non-negative costs. We will assume w.l.o.g. that G is a complete graph (if there is no edge between two nodes, we can add it with an infinite cost).

Let \(V_1,...,V_p\) be a partition of V into p subsets called clusters (i.e. \(V=V_1 \cup V_2 \cup ... \cup V_p\) and \(V_l \cap V_k = \emptyset\) for all \(l,k \in \{1,...,p\}\)). We denote the cost of an edge \(e=\{i,j\}\in E\) by \(c_{ij}\).

The GTSP asks for finding a minimum-cost tour H spanning a subset of nodes such that H contains exactly one node from each cluster \(V_i\), \(i\in \{1,...,p\}\). The problem involves two related decisions: choosing a node subset \(S\subseteq V\), such that \(|S \cap V_k | = 1\), for all \(k=1,...,p\) and finding a minimum cost Hamiltonian cycle in the subgraph of G induced by S.

Such a cycle is called a Hamiltonian cycle. The GTSP is called symmetric if and only if the equality \(c(i,j)=c(j,i)\) holds for every \(i,j \in V\), where c is the cost function associated to the edges of G.

An exact algorithm for the GTSP

In this section, we present an algorithm that finds an exact solution to the GTSP.

Given a sequence \((V_{k_{1}},...,V_{k_{p}})\) in which the clusters are visited, we want to find the best feasible Hamiltonian tour \(H^*\) (w.r.t cost minimization), visiting the clusters according to the given sequence. This can be done in polynomial time by solving \(|V_{k_{1}}|\) shortest path problems as described below.

We construct a layered network, denoted by LN, with \(p+1\) layers corresponding to the clusters \(V_{k_{1}},...,V_{k_{p}}\) and in addition we duplicate the cluster \(V_{k_{1}}\). The layered network contains all the nodes of G plus some extra nodes \(v'\) for each \(v\in V_{k_1}\). There is an arc (ij) for each \(i\in V_{k_l}\) and \(j\in V_{k_{l+1}}\) (\(l=1,...,p-1\)), with the cost \(c_{ij}\) and an arc (ih), \(i,h \in V_{k_l}\), (\(l=2,...,p\)) with the cost \(c_{ih}\). Moreover, there is an arc \((i,j')\) for each \(i\in V_{k_p}\) and \(j'\in V_{k_1}\) with the cost \(c_{ij'}\).

For any given \(v\in V_{k_1}\), are considered paths from v to \(w'\), \(w'\in V_{k_1}\), that visits exactly one node from each cluster \(V_{k_{2}},...,V_{k_{p}}\), hence it gives a feasible Hamiltonian tour. Conversely, every Hamiltonian tour visiting the clusters according to the sequence \((V_{k_{1}},...,V_{k_{p}})\) corresponds to a path in the layered network from a certain node \(v\in V_{k_1}\) to \(w'\in V_{k_1}\).

Therefore the best (w.r.t cost minimization) Hamiltonian tour \(H^*\) visiting the clusters in a given sequence can be found by determining all the shortest paths from each \(v\in V_{k_1}\) to each \(w'\in V_{k_1}\) with the property that visits exactly one node from cluster. The overall time complexity is then \(|V_{k_1}|O(m+n\log n)\), i.e. \(O(nm+n\log n)\) in the worst case. We can reduce the time by choosing \(|V_{k_1}|\) as the cluster with minimum cardinality. It should be noted that the above procedure leads to an \(O(nm+n\log n)\) time exact algorithm for the GTSP. Therefore we have established the following result:

Theorem

The above procedure provides an exact solution to the GSTP in \(O((p-1)!(nm+n\log n))\) time, where n is the number of nodes, m is the number of edges and p is the number of clusters in the input graph.

Clearly, the algorithm presented is an exponential time algorithm unless the number of clusters p is fixed.

Ant Colony System

Ant System proposed in Dorigo (1992) and Maniezzo (1992) is a multi-agent approach used for various combinatorial optimization problems. The algorithms were inspired by the observation of real ant colonies.

An ant can find shortest paths between food sources and a nest. While walking from food sources to the nest and vice versa, ants deposit on the ground a substance called pheromone, forming a pheromone trail. Ants can smell pheromone and, when choosing their way, they tend to choose paths marked by stronger pheromone concentrations. It has been shown that this pheromone trail following behavior employed by a colony of ants can lead to the emergence of shortest paths.

When an obstacle breaks the path ants try to get around the obstacle randomly choosing either way. If the two paths encircling the obstacle have the different length, more ants pass the shorter route on their continuous pendulum motion between the nest points in particular time interval. While each ant keeps marking its way by pheromone the shorter route attracts more pheromone concentrations and consequently more and more ants choose this route. This feedback finally leads to a stage where the entire ant colony uses the shortest path. There are many variations of the ant colony optimization applied on various classical problems.

Ant System make use of simple agents called ants which iteratively construct candidate solution to a combinatorial optimization problem. The ants solution construction is guided by pheromone trails and problem dependent heuristic information.

An individual ant constructs candidate solutions by starting with an empty solution and then iteratively adding solution components until a complete candidate solution is generated. Each point at which an ant has to decide which solution component to add to its current partial solution is called a choice point.

After the solution construction is completed, the ants give feedback on the solutions they have constructed by depositing pheromone on solution components which they have used in their solution. Solution components which are part of better solutions or are used by many ants will receive a higher amount of pheromone and, hence, will more likely be used by the ants in future iterations of the algorithm. To avoid the search getting stuck, typically before the pheromone trails get reinforced, all pheromone trails are decreased by a factor.

Ant Colony System was developed to improve Ant System, making it more efficient and robust. Ant Colony System works as follows:
  • m ants are initially positioned on n nodes chosen according to some initialization rule, for example randomly.

  • Each ant builds a tour by repeatedly applying a stochastic greedy rule—the state transition rule.

  • While constructing its tour, an ant also modifies the amount of pheromone on the visited edges by applying the local updating rule.

  • Once all ants have terminated their tour, the amount of pheromone on edges is modified again by applying the global updating rule. As was the case in ant system, ants are guided, in building their tours by both heuristic information and by pheromone information: an edge with a high amount of pheromone is a very desirable choice.

  • The pheromone updating rules are designed so that they tend to give more pheromone to edges which should be visited by ants.

The ants solutions are not guaranteed to be optimal with respect to local changes and hence may be further improved using local search methods. Based on this observation, the best performance are obtained using hybrid algorithms combining probabilistic solution construction by a colony of ants with local search algorithms as 2–3 opt, tabu-search etc.

In such hybrid algorithms, the ants can be seen as guiding the local search by constructing promising initial solutions, because ants preferably use solution components which, earlier in the search, have been contained in good locally optimal solutions.

Reinforcing Ant Colony System for GTSP

An ACS for the GTSP it is introduced. In order to enforces the construction of a valid solution used in ACS a new algorithm called reinforcing Ant Colony System (RACS) it is elaborated with a new pheromone rule as in Pintea and Dumitrescu (2005) and pheromone evaporation technique as in Stützle and Hoos (1997).

Let \(V_k(y)\) denote the node y from the cluster \(V_k\). The RACS algorithm for the GTSP works as follows:
  • Initially the ants are placed in the nodes of the graph, choosing randomly the clusters and also a random node from the chosen cluster.

  • At iteration \(t+1\) every ant moves to a new node from an unvisited cluster and the parameters controlling the algorithm are updated.

  • Each edge is labeled by a trail intensity. Let \(\tau _{ij}(t)\) represent the trail intensity of the edge (ij) at time t. An ant decides which node is the next move with a probability that is based on the distance to that node (i.e. cost of the edge) and the amount of trail intensity on the connecting edge. The inverse of distance from a node to the next node is known as the visibility, \(\eta _{ij}=\frac{1}{c_{ij}}\).

  • At each time unit evaporation takes place. This is to stop the intensity trails increasing unbounded. The rate evaporation is denoted by \(\rho\), and its value is between 0 and 1. In order to stop ants visiting the same cluster in the same tour a tabu list is maintained. This prevents ants visiting clusters they have previously visited. The ant tabu list is cleared after each completed tour.

  • To favor the selection of an edge that has a high pheromone value, \(\tau\), and high visibility value, \(\eta\) a probability function \({p^{k}}_{iu}\) is considered. \({J^{k}}_{i}\) are the unvisited neighbors of node i by ant k and \(u\in {J^{k}}_{i}, u=V_k(y)\), being the node y from the unvisited cluster \(V_k\). This probability function is defined as follows:
    $$\begin{aligned} {p^{k}}_{iu}(t)= \frac{[\tau _{iu}(t)] [\eta _{iu}(t)]^{\beta }}{\Sigma _{o\in {J^{k}}_{i}}[\tau _{io}(t)] [\eta _{io}(t)]^{\beta }} , \end{aligned}$$
    (1)
    where \(\beta\) is a parameter used for tuning the relative importance of edge cost in selecting the next node. \({p^{k}}_{iu}\) is the probability of choosing \(j=u\), where \(u=V_k(y)\) is the next node, if \(q>q_{0}\) (the current node is i). If \(q\le q_{0}\) the next node j is chosen as follows:
    $$\begin{aligned} j=argmax_{u\in J^{k}_{i}} \{\tau _{iu}(t) {[\eta _{iu}(t)]}^{\beta }\} , \end{aligned}$$
    (2)
    where q is a random variable uniformly distributed over [0, 1] and \(q_{0}\) is a parameter similar to the temperature in simulated annealing, \(0\le q_{0}\le 1\).
  • After each transition the trail intensity is updated using the correction rule from Pintea and Dumitrescu (2005):
    $$\begin{aligned} \tau _{ij}(t+1)=(1-\rho )\tau _{ij}(t)+\rho \frac{1}{n \cdot L^{+}} . \end{aligned}$$
    (3)
    where \(L^{+}\) is the cost of the best tour.
  • In ACS only the ant that generate the best tour is allowed to globally update the pheromone. The global update rule is applied to the edges belonging to the best tour. The correction rule is
    $$\begin{aligned} \tau _{ij}(t+1)=(1-\rho ) \tau _{ij}(t)+\rho \Delta \tau _{ij}(t) , \end{aligned}$$
    (4)
    where \(\Delta \tau _{ij}(t)\) is the inverse cost of the best tour.
  • In order to avoid stagnation we used the pheromone evaporation technique introduced in Stützle and Hoos (1997). When the pheromone trail is over an upper bound \(\tau _{max}\), the pheromone trail is re-initialized. The pheromone evaporation is used after the global pheromone update rule.

The RACS algorithm computes for a given time \(time_{max}\) a sub-optimal solution, the optimal solution if it is possible.

Representation and computational results

A graphic representation of RACS for solving GTSP is shown in Fig. 1. At the beginning, the ants are in their nest and will start to search food in a specific area. Assuming that each cluster has specific food and the ants are capable to recognize this, they will choose each time a different cluster. The pheromone trails will guide the ants to the shorter path, a solution of GTSP, as in Fig. 1.

To evaluate the performance of the proposed algorithm, the RACS was compared to the basic ACS algorithm for GTSP and furthermore to other heuristics from literature: nearest neighbor (NN), a composite heuristic \(GI^{3}\) and a random key-Genetic Algorithm (Renaud and Boctor 1998; Snyder and Daskin 2006). The numerical experiments that compare RACS with other heuristics used problems from TSP library (Bixby and Reinelt 1995). TSPLIB provides optimal objective values for each of the problems. Several problems with Euclidean distances have been considered. The exact algorithm proposed in “An exact algorithm for the GTSP” section, is clearly outperformed by heuristics including RACS, because his running time is exponential, while heuristics including RACS are polynomial time algorithms and provide good sub-optimal solution for reasonable sizes of the problem.

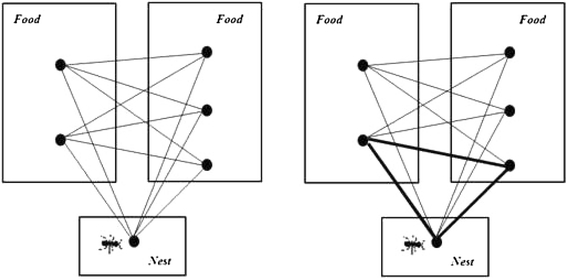

Fig. 1

A graphic representation of the generalized traveling salesman problem (GTSP) solved with an ant-based heuristic called reinforcing Ant Colony System (RACS) is illustrated. The first picture shows an ant starting from the nest to find food, going once through each cluster and returning to the nest; all the ways are initialized with the same \(\tau _{0}\) pheromone quantity; after several iterations performed by each ant from the nest, the solution is visible. The second picture shows a solution of generalized traveling salesman problem (GTSP) represented by the largest pheromone trail (thick lines); the pheromone is evaporating on all the other trails (gray lines)

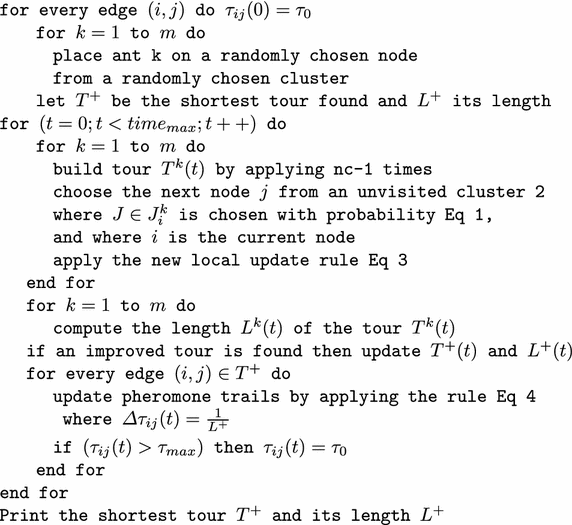

Reinforcing Ant Colony System algorithm for the GTSP

To divide the set of nodes into subsets we used the procedure proposed in Fischetti et al. (1997). This procedure sets the number of clusters \(m=[n/5]\), identifies the m farthest nodes from each other, called centers, and assigns each remaining node to its nearest center. Obviously, some real world problems may have different cluster structures, but the solution procedure presented in this paper is able to handle any cluster structure. \(L_{nn}\) is the result of NN algorithm. In NN algorithm the rule is always to go next to the nearest as-yet-unvisited location. The corresponding tour traverses the nodes in the constructed order.The initial value of all pheromone trails is \(\tau _{0}\).
$$\begin{aligned} \tau _{0}=\frac{1}{n \cdot L_{nn}}. \end{aligned}$$
(5)
For the pheromone evaporation phase, let denote the upper bound with \(\tau _{max}\).
$$\begin{aligned} \tau _{max}=\frac{1}{1-\rho }\cdot \frac{1}{L_{nn}} . \end{aligned}$$
(6)
The decimal values can be treated as parameters and can be changed if it is necessary. The parameters for the algorithm are critical as in all other ant systems. Currently there is no mathematical analysis developed to give the optimal parameter in each situation. In the ACS and RACS algorithm the values of the parameters were chosen as follows: \(\beta =5\), \(\rho =0.5\), \(q_{0}=0.5\).
In Table  1 are the comparative computational results for solving the GTSP using ACS, RACS and NN, \(GI^{3}\) and random key-Genetic Algorithm. The columns in Table  1 are as follows.
  • Problem The name of the test problem. The digits at the beginning of the name give the number of clusters (nc); those at the end give the number of nodes (n).

  • Opt.val. The optimal objective value for the problem (Snyder and Daskin 2006).

  • ACS, RACS, NN, GI 3, GA The objective value returned by the included algorithms.

Table  1 includes the best solutions in italic format. All the solutions of ACS and RACS are the average of five successively run of the algorithm, for each problem. Termination criteria for ACS and RACS is given by the \(time_{max}=10\) min. For statistics is used the percentage relative error, (PER) where the absolute error is the absolute difference between best solution and the obtain solution from Table  1.
$$\begin{aligned} PER=\frac{Absolute\,error}{best\,value} \times 100 \end{aligned}$$
The averages of PER are \(0.71\%\) for ACS, \(11.50\%\) for NN, \(0.98\%\) for GI3, \(0.16\%\) for GA and the best value \(0.10\%\) for RACS. The same for the maximal PER values are: \(6.52\%\) for ACS, \(36.87\%\) for NN, \(5.91\%\) for GI3, \(2.33\%\) for GA and the best value \(0.87\%\) for RACS. The statistics shows that RACS for GTSP comparatively performed well. It can be improved if more appropriate values for the parameters are used. Also, an efficient combination with other algorithms can potentially improve the results.
Table 1

Reinforcing Ant Colony System (RACS) versus other algorithms

Problem

Opt. val.

ACS

RACS

NN

\(GI^{3}\)

GA

11EIL51

174

174

174

181

174

174

14ST70

316

316

316

326

316

316

16EIL76

209

209

209

234

209

209

16PR76

64,925

64,925

64,925

76,554

64,925

64,925

20RAT99

497

497

497

551

497

497

20KROA100

9711

9711

9711

10,760

9711

9711

20KROB100

10,328

10,328

10,328

10,328

10,328

10,328

20KROC100

9554

9554

9554

11,025

9554

9554

20KROD100

9450

9450

9450

10,040

9450

9450

20KROE100

9523

9523

9523

9763

9523

9523

20RD100

3650

3650.4

3650

3966

3653

3650

21EIL101

249

249

249

260

250

249

21LIN105

8213

8215.4

8213

8225

8213

8213

22PR107

27,898

27,904.4

27,898

28,017

27,898

27,898

22PR124

36,605

36,635.4

36,605

38,432

36,762

36,605

26BIER127

72,418

72,420.2

72,418

83,841

76,439

72,418

28PR136

42,570

42,593.4

42,570

47,216

43,117

42,570

29PR144

45,886

46,033

45,886

46,746

45,886

45,886

30KROA150

11,018

11,029

11,018

11,712

11,018

11,018

30KROB150

12,196

12,203.6

12,196

13,387

12,196

12,196

31PR152

51,576

51,683.2

51,576.6

53,369

51,820

51,576

32U159

22,664

22,729.2

22,665.6

26,869

23,254

22,664

39RAT195

854

856.4

854

1048

854

854.2

40D198

10,557

10,575.2

10,557.6

12,038

10,620

10,557

40KROA200

13,406

13,466.8

13,407.2

16,415

13,406

13,406

40KROB200

13,111

13,157.8

13,111

17,945

13,111

13,113.4

45TS225

68,345

69,547.2

68,360.6

72,691

68,756

68,435.2

46PR226

64,007

64,289.4

64,028

68,045

64,007

64,007

53GIL262

1013

1015.8

1015.2

1152

1064

1016.2

53PR264

29,549

29,825

29,549.6

33,552

29,655

29,549

60PR299

22,615

23,039.6

22,668.2

27,229

23,119

22,631

64LIN318

20,765

21,738.8

20,790.2

24,626

21,719

20,836.2

80RD400

6361

6559.4

6416.2

7996

6439

6509

84FL417

9651

9766.2

9706.4

10,553

9697

9653

88PR439

60,099

64,017.6

60,570.6

67,428

62,215

60,316.8

89PCB442

21,657

22,137.8

21,806.4

26,756

22,936

22,134

Conclusions

The basic idea of ACS is that of simulating the behavior of a set of agents cooperating to solve an optimization problem by means of simple communications. The algorithm introduced to solve the GTSP, called RACS, an ACS-based algorithm with new correction rules. The computational results of the proposed algorithm are good and competitive in both solution quality and computational time with the existing heuristics (Renaud and Boctor 1998; Snyder and Daskin 2006). The RACS results can be improved with better values of parameters or using hybrid algorithms. Some disadvantages refer the multiple parameters used for the algorithm and the high hardware resources requirements.
