Clustering datasets by complex networks analysis
Complex Adaptive Systems Modeling volume 1, Article number: 5 (2013)
Abstract
This paper proposes a method based on complex networks analysis, devised to perform clustering on multidimensional datasets. In particular, the method maps the elements of the dataset in hand to a weighted network according to the similarity that holds among data. Network weights are computed by transforming the Euclidean distances measured between data according to a Gaussian model. Notably, this model depends on a parameter that controls the shape of the actual functions. Running the Gaussian transformation with different values of the parameter allows to perform multiresolution analysis, which gives important information about the number of clusters expected to be optimal or suboptimal.
Solutions obtained running the proposed method on simple synthetic datasets allowed to identify a recurrent pattern, which has been found in more complex, synthetic and real, datasets.
Background
Complex networks are used in different domains to model specific structures or behaviors 2010. Relevant examples are the Web, biological neural networks, and social networks 2002,2004,2003. Community detection is one of the most important processes in complex network analysis, aimed at identifying groups of highly mutually interconnected nodes, called communities 2004, in a relational space. From a complex network perspective, a community is identified after modeling any given dataset as graph. For instance, a social network inherently contains communities of people linked by some (typically binary) relations –e.g., friendship, sports, hobbies, movies, books, or religion. On the other hand, from a machine learning perspective, a community can be thought of as a cluster. In this case, elements of the domain are usually described by a set of features, or properties, which permit to assign each instance a point in a multidimensional space. The concept of similarity is prominent here, as clusters are typically identified by focusing on common properties (e.g., age, employment, health records).
The problem of clustering multidimensional datasets without a priori knowledge about them is still open in the machine learning community (see, for example, 2010,2001,1998). Although complex networks are apparently more suited to deal with relations rather than properties, nothing prevents from representing a dataset as complex network. In fact, the idea of viewing datasets as networks of data has already been developed in previous works. Just to cite few, Heimo et al. 2008 studied the problem of multiresolution module detection in dense weighted networks, using a weighted version of the q‐state Potts method. Mucha et al. 2010 developed a generalized framework to study community structures of arbitrary multislice networks. Toivonen et al. 2012 used network methods in analyzing similarity data with the aim to study Finnish emotion concepts. Furthermore, a similar approach has been developed by Gudkov et al. 2008, who devised and implemented a method for detecting communities and hierarchical substructures in complex networks. The method represents nodes as point masses in an N−1dimensional space and uses a linear model to account for mutual interactions.
The motivation for representing a dataset as graph lies in the fact that very effective algorithms exist on the complex network side to perform community detection. Hence, these algorithms could be used to perform clustering once the given dataset has been given a graph‐based representation. Following this insight, in this paper we propose a method for clustering multidimensional datasets in which they are first mapped to weighted networks and then community detection is enforced to identify relevant clusters. A Gaussian transformation is used to turn distances of the original (i.e. feature‐based) space to link weights of the complex networks side. As the underlying Gaussian model is parametric, the possibility to run Gaussian transformations multiple times (while varying the parameter) is exploited to perform multiresolution analysis, aimed at identifying the optimal or suboptimal number of clusters.
The proposed method, called DAN (standing for Datasets as Networks), makes a step forward in the direction of investigating the possibility of using complex network analysis as a proper machine learning tool. The remainder of the paper is structured as follows: Section Methods describes how to model a dataset as complex network and gives details about multiresolution analysis. For the sake of readability, the section briefly recalls also some informative notion about the adopted community detection algorithm. Section Results and discussion illustrates the experiments and analyzes the corresponding results. The section recalls also some relevant notions of clustering, including two well‐known algorithms, used therein for the sake of comparison. Conclusions (i.e. Section Conclusions) end the paper.
Methods
The first step of the DAN method consists of mapping the dataset in hand to a complex network. The easiest way to use a complex network for encoding a dataset is to let nodes denote the elements of the dataset and links denote their similarity. In particular, we assume that the weight of a link depends only on the distance among the involved elements. To put the model into practice, we defined a family of Gaussian functions –used for computing the weight between two elements.
Computing similarity among data
Let us briefly recall that a metric space is identified by a set \mathcal{Z}, together with a distance function d:\mathcal{Z}\times \mathcal{Z}\to \phantom{\rule{1em}{0ex}}\mathbb{R}, like Euclidean, Manhattan and Chebyshev distances. In DAN, the underlying assumption is that a sample s can be described by N features f_{1},f_{2},…,f_{ N }, encoded as real numbers. In other words, the sample can be represented as a vector in an N‐dimensional metric space \mathcal{S}. Our goal is to generate a fully connected weighted network taking into account the distances that hold in \mathcal{S}. Conversely, the complex network space will be denoted as \mathcal{N}, with the underlying assumption that for each sample {s}_{i}\in \mathcal{S} a corresponding {n}_{i}\in \mathcal{N} exists and vice versa. This assumption makes easier to evaluate the proximity value L_{ ij } between two {n}_{i},{n}_{j}\in \mathcal{N}, according to the distance d_{ ij } between the corresponding elements {s}_{i},{s}_{j}\in \mathcal{S}.
Without loss of generality, let us assume that each feature in \mathcal{S} is normalized in [0,1] and that a function \psi :\mathbb{R}\to \mathbb{R} exists for computing the similarity among data in \mathcal{N}, starting from the value of the distance function in \mathcal{S}. In symbols:
Evaluating similarity for all pairs of samples in \mathcal{N} (i.e., evaluating their weighted links) allows to generate a fully connected complex network. Moreover, recalling that \mathcal{S} is normalized in [0,1], we expect L_{ ij } ≈ 0 when {d}_{\mathit{\text{ij}}}\approx \sqrt{N}, N being the number of features of the space \mathcal{S}. The value \sqrt{N} comes from the following inequality, which holds for any pair of samples {s}_{i},{s}_{j}\in \mathcal{S} (represented by their vector representation in terms of the given set of features r_{ i },r_{ j }):
where r_{ i } [k] denotes the k‐th component of r_{ i }.
The adopted community detection algorithm
Community detection is the process of finding communities in a graph (the process is also called “graph partitioning”). From a computational perspective, this is not a simple task and many algorithms have been proposed, according to three main categories: divisive, agglomerative, and optimization algorithms. In our work, we used the Louvain method 2008, an optimization algorithm based on an objective function devised to estimate the quality of partitions. In particular, at each iteration, the Louvain Method tries to maximize the so‐called weighted‐modularity, defined as:
where A_{ ij } is the generic element of the adjacency matrix, k is the degree of a node, m is the total “weight” of the network, and δ(s_{ i }s_{ j }) is the Kronecker Delta, used to assert whether a pair of samples belongs to the same community or not.
Multiresolution analysis
Let us recall that multiresolution analysis is performed with the goal of extracting relevant information, useful for identifying the optimal or suboptimal number of communities (hence, of clusters). To perform multiresolution analysis on the network space, a parametric family \Psi \left(\lambda \right):\mathbb{R}\to \mathbb{R} of functions is required, where λ is a parameter that controls the shape of each ψ function. After setting a value for λ, the corresponding ψ can be used to convert the distance computed for each pair of samples in the given dataset into a proximity value. In particular, the following parametric family of Gaussian functions has been experimented:
As a consequence, L_{ ij }, i.e. the weight of the link between two nodes {n}_{i},{n}_{j}\in \mathcal{N}, can be evaluated according to Equation 4 as follows:
where the λ parameter is used as a constant decay of the link.
Following the definition of Ψ(λ;x) as {e}^{\lambda {x}^{2}}, multiresolution analysis takes place varying the value of the λ parameter. The specific strategy adopted for varying λ is described in the experimental section. As for now, let us note that an exponential function with negative constant decay ensures that distant points in an Euclidean space are loosely coupled in the network space and vice versa. Moreover, this construction is useful only if Ψ(λ;x) models local neighborhoods, which gives further support to the choice of Gaussian functions 2007.
Results and discussion
Experiments have been divided in three main groups: i) preliminary tests, aimed at running DAN on few and relatively simple synthetic datasets, ii) proper tests, aimed at running DAN on more complex datasets, and iii) comparisons, aimed at assessing the behavior of DAN with reference to k−Means and spectral clustering.
Almost all datasets used for experiments (except for Iris) are synthetic and have been generated according to the following algorithm:
Inputs: number of samples (n), dimension in the Euclidean space (N), number of clusters (k), and radius of a cluster (r)

1.
For each cluster j = 1,2,…,k, choose a random position c _{ j } in the normalized Euclidean space;

2.
Equally subdivide samples among clusters and randomly spread them around each position c _{ j }, with a distance from c _{ j } in [0,r].
Preliminary tests

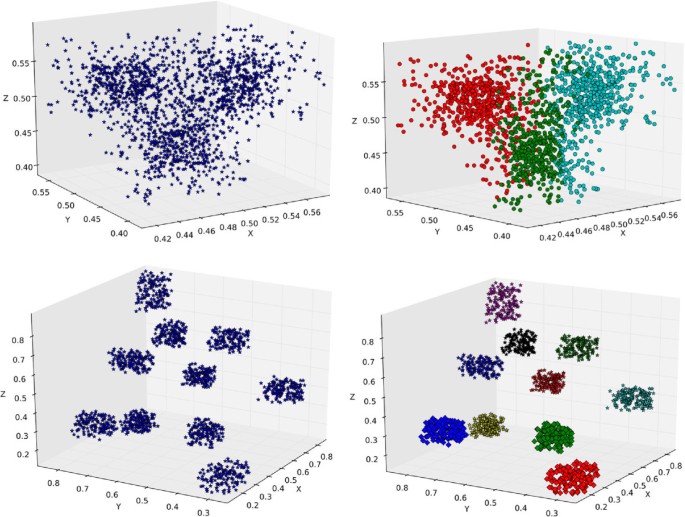

A first group of 4 synthetic datasets, called TS/1 (i.e., Testing Set 1) hereinafter, has been generated. Their main characteristics are summarized in Table 1. Figure 1 shows the datasets with 3 and 10 clusters, together with the optimal solutions achieved by DAN.
Multiresolution analysis has been performed varying the value of λ according to Equation 4. A logarithm scaling has been used for λ, as we experimentally found that small changes had a negligible impact on the corresponding algorithm for community detection. In particular, for each dataset, we calculated the adjacency matrix for all values of λ such that log_{10}(λ) = 0,1,2,3,4. It is worth pointing out that the maximum value of log_{10}(λ) is expected to depend on the cardinality of the dataset in hand –the greater the cardinality, the greater the value of log_{10}(λ). However, for most datasets, a value of log_{10}(λ) = 4, i.e., λ = 10,000, appears to be large enough to include all relevant information by means of multiresolution analysis. Table 2 shows the results of multiresolution analysis for preliminary tests.
As for the capability of identifying the optimal or suboptimal solutions^{a} by means of multiresolution analysis, we observed the following pattern to occur: the optimal number of communities is robust with respect to the values of log_{10}(λ), as highlighted in Table 2. Our hypothesis was that this recurrent pattern could be considered as a decision rule for identifying the optimal number of communities (and hence of λ).
Proper Tests (TS/2)
We generated a second group of datasets, characterized by an increasing complexity with respect to TS/1. This second group of datasets is denoted as TS/2 (i.e., Testing Set 2) hereinafter. We run DAN also on these new datasets, with the goal of verifying the validity of the pattern identified during preliminary tests. Moreover, we performed experiments using Iris, a well‐known multivariate real dataset available at the UCI ML repository 2010. Iris contains 50 samples (described by 4 attributes) belonging to 3 species of Iris: setosa, virginica and versicolor. Table 3 summarizes the main characteristics of TS/2 and Iris. The corresponding results, obtained with DAN, are shown in Table 4.
Looking at these results, we still observe the pattern identified by preliminary tests. Furthermore, one may note that a correlation often exists between the cardinality of the dataset in hand and the order of magnitude of its optimal λ (typically, the former and the latter have the same order of magnitude). It is also interesting to note that in some datasets of TS/1 (i.e., 2nd, 3rd and 4th) and of TS/2 (i.e., 4th, 5th and 6th) the optimal λ precedes a rapid increase in the number of communities. As a final note, we found no significant correlation between the optimal λ and the weighted‐modularity parameter, notwithstanding the fact that this parameter is typically important to assess the performance of the adopted community detection algorithm.
Comparison: DAN vs. k‐Means and spectral clustering
Experimental results obtained with the proposed method have been compared with those obtained by running two clustering algorithms: the k−Means and the spectral clustering. For the sake of readability, let us preliminarily spend few words on these algorithms.
K‐means
As centroid‐based clustering is one of the most acknowledged clustering strategies, the k−Means algorithm (e.g., 1998), which belongs to this family, has been selected as one of the comparative tools. For the sake of completeness, let us briefly summarize it:

1.
Randomly place k centroids in the given metric space;

2.
Assign each sample to the closest centroid, thus identifying tentative clusters;

3.
Compute the Center of Mass (CM) of each cluster;

4.
IF CMs and centroids (nearly) coincide THEN STOP;

5.
Let CMs become the new centroids;

6.
REPEAT from STEP 2.
The evaluation function of k−Means, called distortion and usually denoted as J, is computed according to the formula:
where n_{ j } is the number of samples that belong to the j‐th cluster, {s}_{i}^{\left(j\right)} is the i‐th sample belonging to j‐th cluster, and c_{ j } its centroid. Note that different outputs of the algorithm can be compared in terms of distortion only after fixing k –i.e., the number of clusters. In fact, comparisons performed over different values of k are not feasible, as the more k increases the lower the distortion is. For this reason, the use of k−Means entails a main issue: how to identify the optimal number k of centroids (see 2004).
Spectral clustering
Spectral clustering 2007 algorithms use the spectrum of the similarity matrix to identify relevant clusters (the generic element of a similarity matrix measures the similarity between the corresponding data). These methods allow to perform dimensionality reduction, so that clustering can be enforced along fewer dimensions. Similarity matrices can be generated in different ways –e.g., ε‐neighborhood graph, k‐nearest neighbor graphs and fully connected graph. The main tools for spectral clustering are graph Laplacian matrices. In particular, in this work we used the unnormalized graph Laplacian matrix defined as:
where D is the degree matrix (i.e., a diagonal matrix with the degrees d_{1},…,d_{ n } on the diagonal) and W is the adjacency (or similarity) matrix of the similarity graph. The following algorithm has been used to perform unnormalized spectral clustering:

1.
Generate the fully connected similarity graph and let W be its adjacency matrix;

2.
Compute the unnormalized Laplacian L;

3.
Compute the first k eigenvectors u _{1},…,u _{ k }of L;

4.
Let U\in {\Re}^{k} be the matrix containing the eigenvectors u _{1},…,u _{ k } as columns;

5.
For i = 1,…,n, let {y}_{i}\in {\Re}^{k} be the vector corresponding to the i‐th row of U;

6.
Cluster the points (y _{ i })_{i=1,…,n}in {\Re}^{k} with the k‐means algorithm into clusters C _{1},…,C _{ k }.
Notably, also in this case the number k of cluster is required as input.
Comparative results
We run the k‐Means algorithm (using the Euclidean metric) and the spectral clustering algorithm on the selected datasets –with the goal of getting new insights on the results of the partitioning procedure defined in DAN. Both algorithms used for comparison purposes have been run using the optimal values of k identified by means of multiresolution analysis. The comparison has been performed considering the distortion J computed for each solution. Figure 2 reports comparative results and clearly shows that, in around 72.2 percent of the cases, DAN achieves the best result. These results highlight the validity of the proposed framework, also considering that DAN computes partitions without any a priori knowledge about the datasets, as the optimal (or suboptimal) number of clusters is typically found by applying the previously described pattern. Although k−Means is faster than DAN, it is important to stress that its results, at each attempt, depend tightly on the initial position of the k centroids. Hence, in absence of a strategy for identifying the initial disposal of centroids, k−Means should be (and it is in fact) run several times –the solution with the smaller distortion being selected as optimal. The spectral clustering algorithm showed its effectiveness many times, although bad solutions have been computed with datasets 2 and 3 of TS/2, characterized by 20 and 30 clusters, respectively.
Conclusions
In this paper, a method for clustering multidimensional datasets has been described, able to find the most appropriate number of clusters also in absence of a priori knowledge. We have shown that community detection can be effectively used also for data clustering tasks, provided that datasets are viewed as complex networks. The proposed method, called DAN, makes use of transformations between metric spaces and enforces multiresolution analysis. A comparative assessment with other well‐known clustering algorithms (i.e., k−Means and spectral clustering) has also been performed, showing that DAN often computes better results.
As for future work, we are planning to test DAN with other relevant datasets, in a comparative setting. Furthermore, we are planning to study to which extent one can rely on the decision pattern described in the paper, assessing its statistical significance over a large number of datasets.
Endnote
References
Albert R, Barabasi A: Statistical Mechanics of Complex Networks. Rev Mod Phys 2002, 74: 47–97. 10.1103/RevModPhys.74.47
Alsabti K: An efficient k‐means clustering algorithm. Proceedings of IPPS/SPDP Workshop on High Performance Data Mining 1998.
Arenas A, Fernandez A, Gomez S: Analysis of the structure of complex networks at different resolution levels. New Journal of Physics 2008,10(5):053039. 10.1088/13672630/10/5/053039
Blondel VD, Guillaume JL, Lambiotte R, Lefebvre E: Fast unfolding of communities in large network. Journal of Statistical Mechanics: Theory and Experiment 2008. P10008 P10008
Eick C, Zeidat N, Zhao Z: Supervised Clustering – Algorithms and Benefits. Proc. of ICTAI 2004.
Frank A, Asuncion A: UCI Machine Learning Repository. 2010.http://archive.ics.uci.edu/ml []
Gudkov V, Montealegre V, Nussinov S, Nussinov Z: Community detection in complex networks by dynamical simplex evolution. Phys Rev E 2008, 78: 016113.
Guimer R, Danon L, Diaz‐Guilera A, Giralt F, Arenas A: Self‐similar community structure in a network of human interactions. Phys Rev E Stat Nonlin Soft Matter Phys 2003, 68: 065103.
Jain AK: Data clustering: 50 years beyond K‐means. Pattern Recognition Letters 2010,31(8):651–666. 10.1016/j.patrec.2009.09.011
Li Z, Hu Y, Xu B, Di Z, Fan Y: Detecting the optimal number of communities in complex networks. Physica A: Statistical Mehcanics and Its Applications 2011, 391: 1770–1776.
Mark HH, Yu B: Model Selection and the Principle of Minimum Description Length. Journal of the American Statistical Association 1998, 96: 746–774.
Mucha P, Richardson T, Macon K, Porter M, Onnela J: Community Structure in Time‐Dependent, Multiscale, and Multiplex Networks. Science 2010,328(5980):876–878. 10.1126/science.1184819
Newman MEJ, Girvan M: Finding and evaluating community structure in networks. Phys Rev 2004, 69: 026113.
Newman M: Networks: An Introduction. Oxford University Press, Inc., New York, NY, USA; 2010.
Sporns O, Chialvo DR, Kaiser M, Hilgetag C: Organization, development and function of complex brain networks. Trend in Cognitive Sciences 2004.,8(9):
Heimo T, Kaski K, Kumpula JM, Saramaki J: Detecting modules in dense weighted networks with the Potts method. Journal of Statistical Mechanics: Theory and Experiment 2008, 08: 08007.
Tibshirani R, Walther G, Hastie T: Estimating the number of clusters in a data set via the gap statistic. Journal of the Royal Statistical Society ‐ Series B: Statistical Methodology 2001,63(2):411–423. 10.1111/14679868.00293
Toivonen R, Kivela M, Saramaki J, Viinikainen M, Vanhatalo M, Sams M: Networks of Emotion Concepts. PLoS ONE 2012,7(1):e28883. 10.1371/journal.pone.0028883
von Luxburg U: A Tutorial on Spectral Clustering. Statistics and Computing 2007,17(4):395–416. 10.1007/s112220079033z
